Product Name: Sanding machine
Date: 2019-06-19 15:05:51
Number of clicks: 266
About Us:

　 Linyi Shining International Trade Co., Ltd is company combined manufacturing and trading in one. The factory has established in 1993, is one of the largest and earliest wood-based panel machinery manufacturers in Linyi of China. After ...

0086-13884878111

info@shiningmachinery.com

Detailed introduction

Belt sander
Working width	1300mm
Working thickness	3-90mm
Working length	≥700mm
Feed speed	6-30m/min
Size of sand belt (WxP)	1350x2620mm
Sander motor	75kw*2
The Feeding motor	11kw
The Lift Motor	1.5kw
The brush motor	0.75kw*2
Compressed air consumption	0.15cbm/min
Working air pressure	0.6MPa
Air consumption	24000 cbm/H
Speed of dust collecting	25-30m/s
Overall dimension (LxWxH)	220033602900mm
Total weight	15000kg

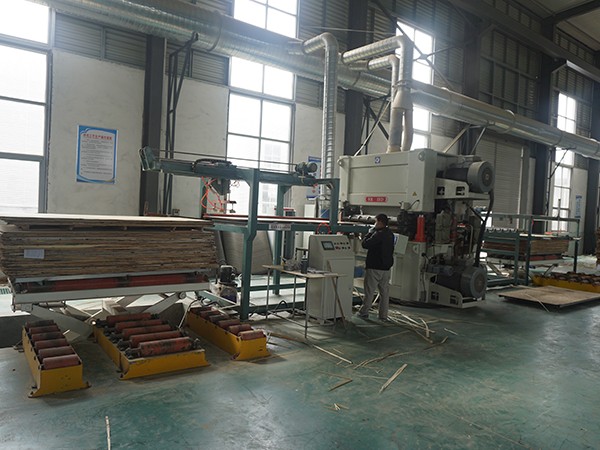

The Automatic transfer system
Lift table	3 Tons, 1 set
Infeeding cross roller straightener	1500*3000mm， 1.5kw
Sanding machine	Double sides calibration
Out-feed roller	1500*3000mm， 1.5kw
Stacker	Automatic stacking with lift table
