About Us:
Linyi Shining International Trade Co., Ltd is company combined manufacturing and trading in one. The factory has established in 1993, is one of the largest and earliest wood-based panel machinery manufacturers in Linyi of China. After ...
Detailed introduction

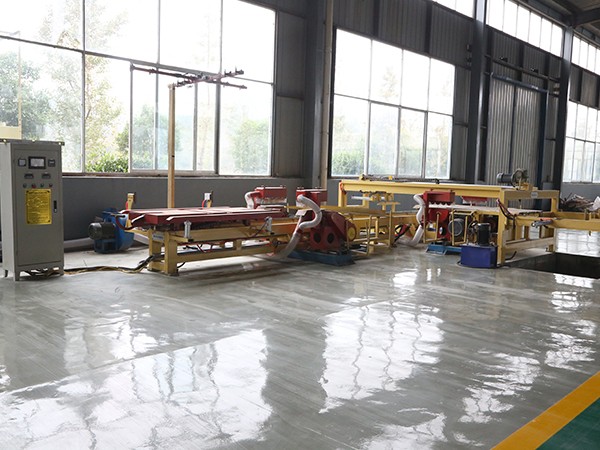

Automatic plywood saw | |
Model | Size adjustable |
Width cutting range | 900-1240 |
Length cutting range | 1800-2460 |
Working speed | 10—30m/min |
Total Power | 43 KW |
The saw blade motor | 7.5kw*4 with for scoring saw |
The Transfer motor | 1.5kw *2 |
Lift table motor | 3 kw*1 |
Feeding style | By manual |
Dust collector motor | 4 kw |
Saw blade dimension | Diameter 305mm, Inner diameter 25.4mm |
Capacity | 8-12pcs/min |
The working style | Infrared ray guidance |
Electric part brand | Mitsubishi parts |
Weight | 5500kgs |
Overall dimension | 11000×5500×1200(mm) |
1.Size adjustable:4 8ft 3 6ft
2.High precision: infrared guidance control.
3.Easy to operate: Mitsubishi PLC and touch screen.
4. Scoring saw blade to avoid the rough cutting.
5.Automatic stacking system device
6.High capacity: 300-500pcs / hour (16mm).
8.Automatic Stack and tidy:Solid pneumatic cylinder for tidy the boards.
